ROCH RAC-Series 24,000 BTU Inverter Split Air Conditioner

Consistent cooling for home or office

The ROCH RAC-Series split air conditioner is advertised with 24,000 BTU cooling capacity and inverter technology, designed to adjust cooling output as room conditions change. Its white wall-mounted indoor unit pairs with a separate outdoor condenser for a tidy installation.

Listed specifications

• Brand: ROCH; series reference: RAC-Series. Exact model suffix should be confirmed from the rating plate.
• Advertised cooling capacity: 24,000 BTU.
• Advertised compressor technology: inverter.
• Listed refrigerant: R-410A; confirm against the supplied unit's rating label before installation or servicing.
• Listed supply voltage: 220–240V. Confirm frequency, electrical input and circuit requirements with the installer.
• Seller-listed functions: automatic diagnosis, economy mode, automatic restart, 24-hour timer, dust filter and automatic protection/standby. Availability depends on the exact supplied model.

Dimensions and installation

Seller artwork lists the indoor unit at approximately 1006 × 316 × 249mm and the outdoor unit at 850 × 710 × 269mm. Listed weights are 12kg indoors and 49kg outdoors. These figures require matching-model confirmation and are not packed shipping measurements.

Have a qualified air-conditioning installer assess room size, heat load, mounting, drainage and electrical supply. Confirm the indoor/outdoor unit pairing, remote control, pipe kit, brackets and installation charges before ordering; installation and accessory inclusions have not been established.

Energy use and product information

Actual electricity use depends on room conditions, temperature setting, sizing, installation and usage. No fixed percentage saving or electricity-bill reduction is guaranteed. An energy-efficiency rating has not been verified. The copied 1.5CV power claim conflicts with the advertised capacity and is not used as a specification. R-410A is listed as the refrigerant, not as an environmentally harmless feature.

Warranty

Advertised one-year warranty, subject to the supplier's written terms, covered components and installation requirements. Confirm whether parts, labour and installation are covered; no additional compressor warranty is claimed.

Image information

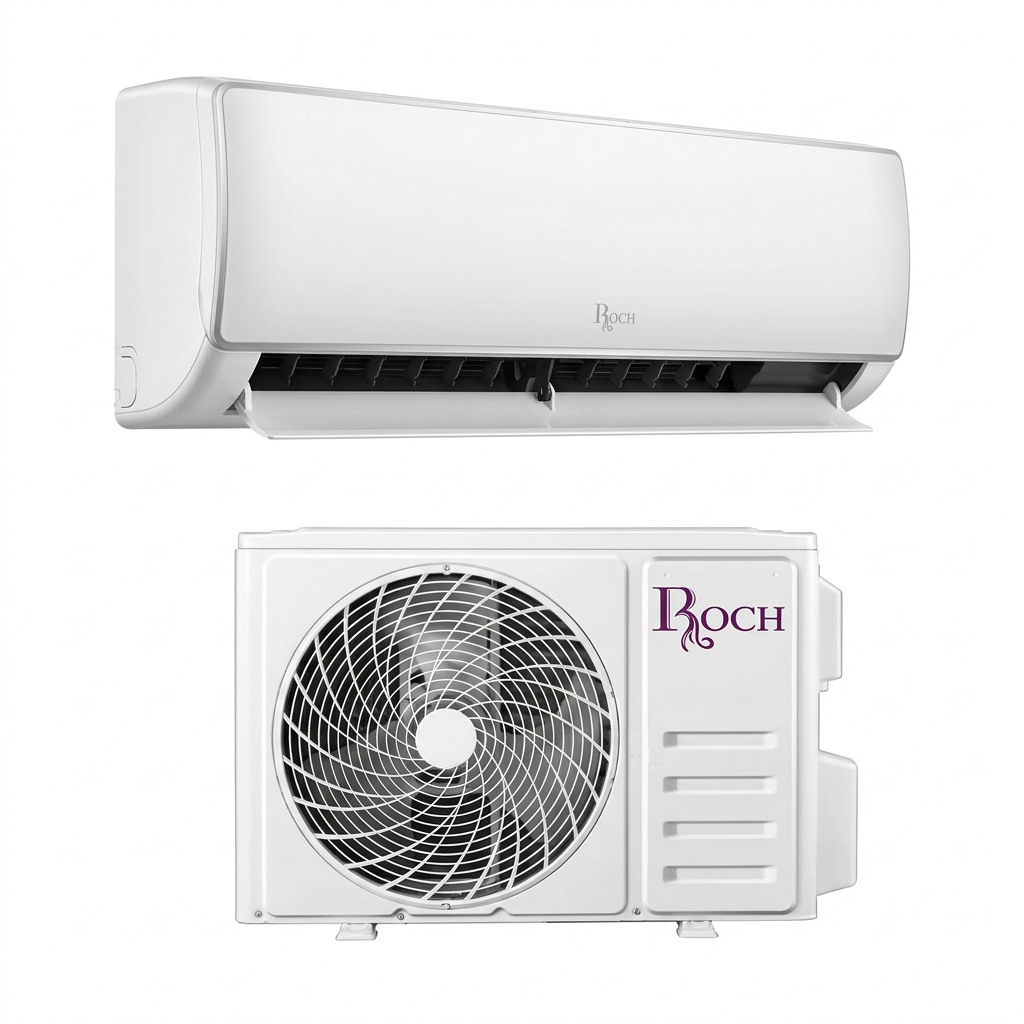

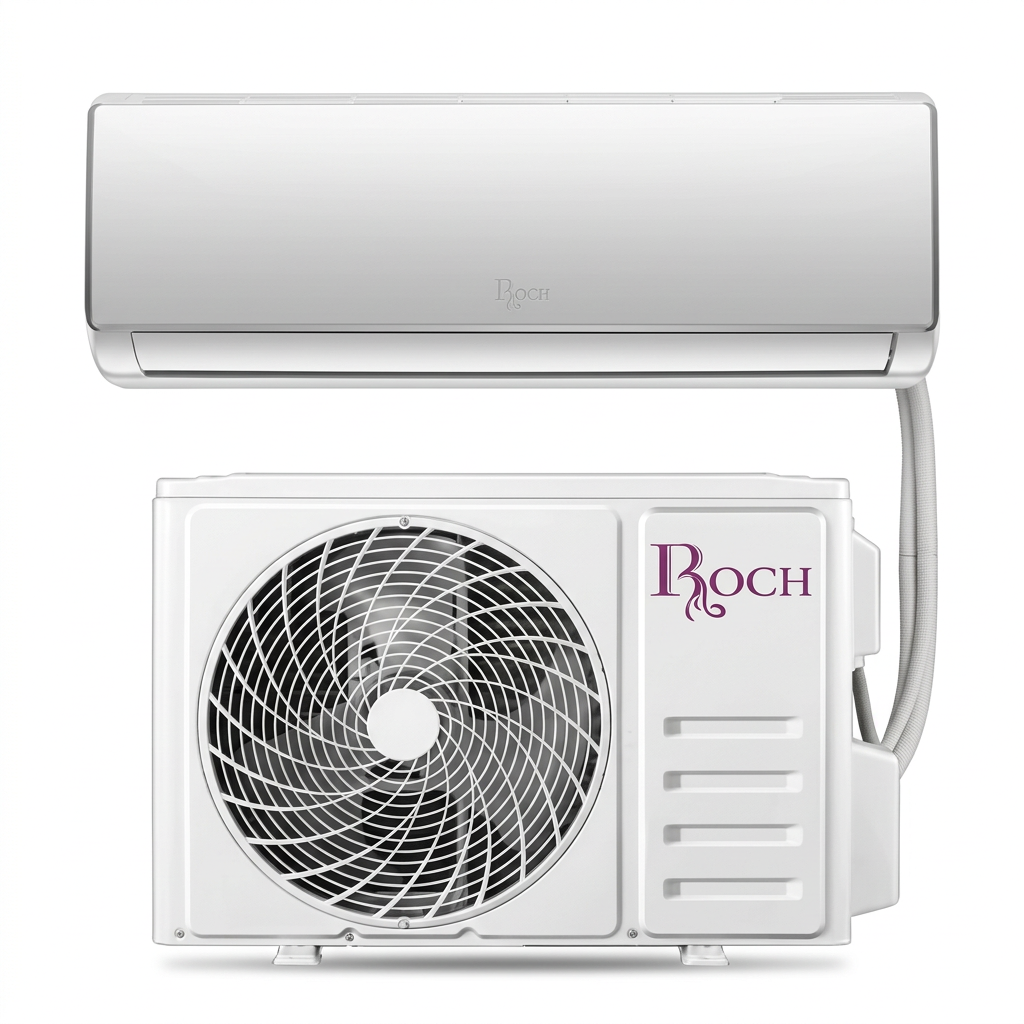

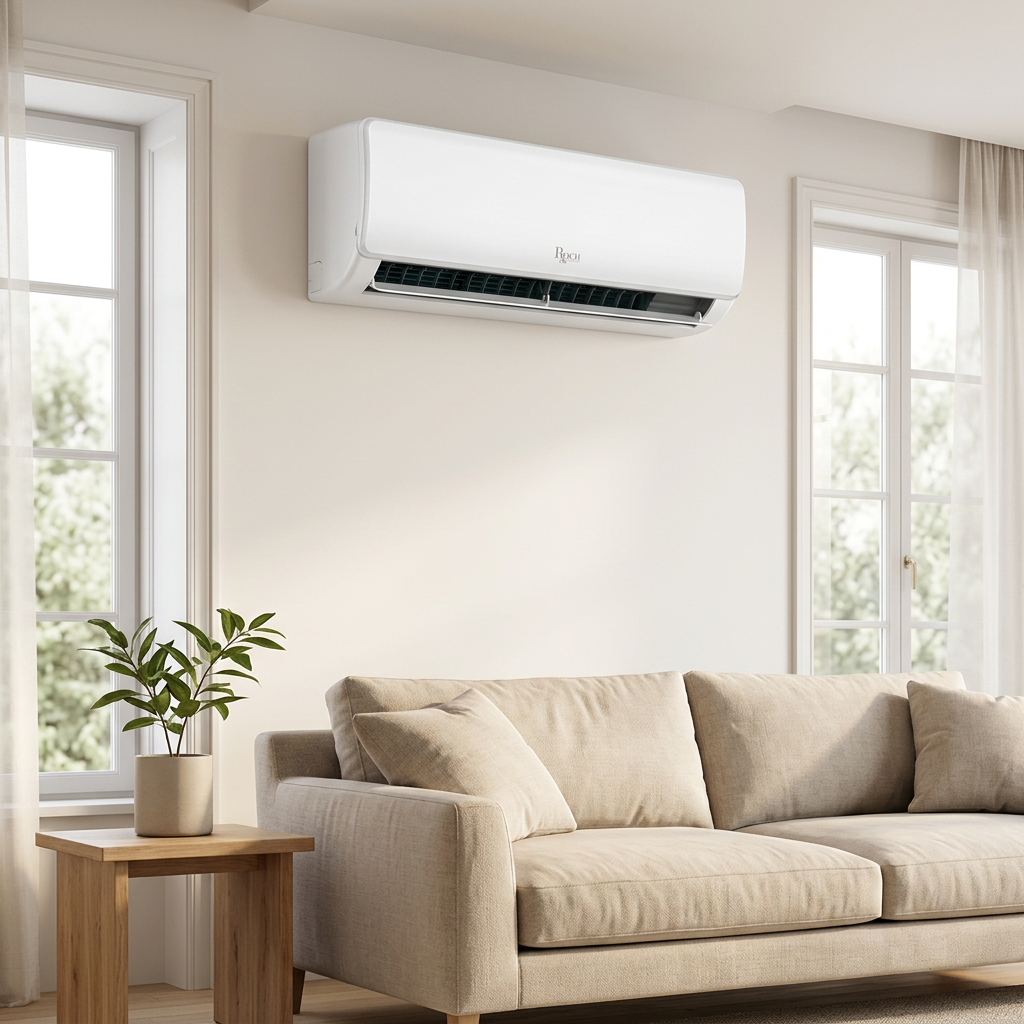

The three refreshed pictures are AI-generated/edited reference-based illustrations: normal product set, airflow-louver-open product set and installed indoor-unit lifestyle view. The open view does not depict a removed service cover. Fine details may vary; room furnishings are not included.
